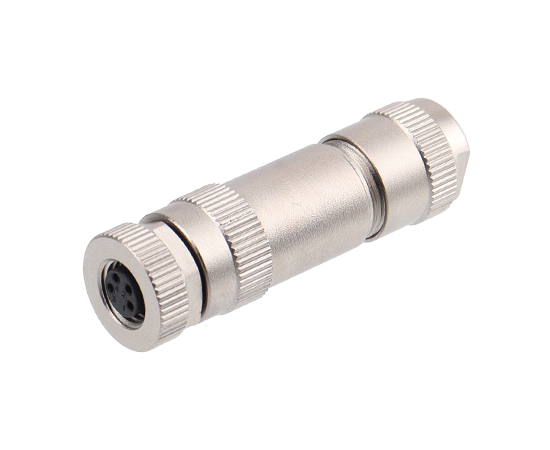

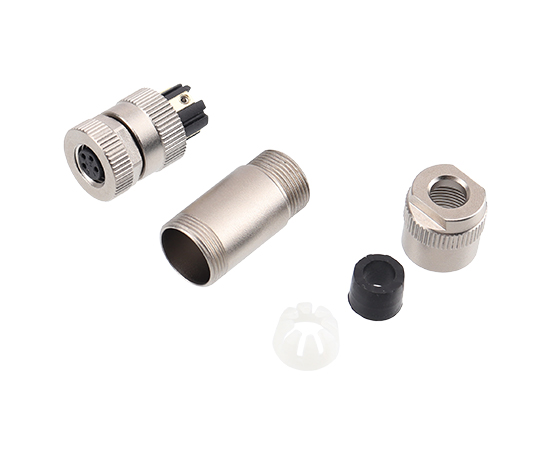

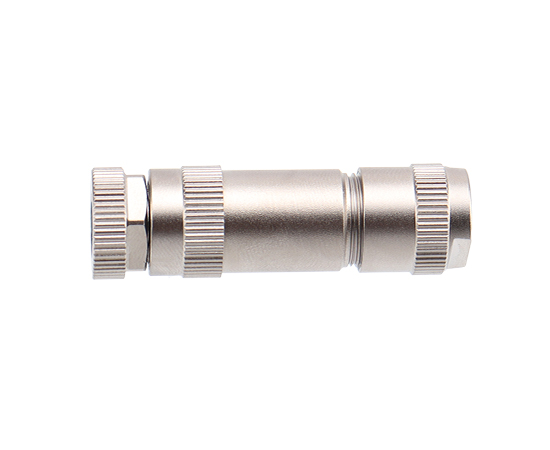

M8 Straight Female Metal Assembled Plug (Screw terminal)

European standard Connectors M8 Series,
Structure type: Metal assembled straight plug,
Pin type: Female type,
Contacts number: 3,4 alfiler,
Connection method: Screw,
Shield: Yes
Certification: CE,RoHS,UL
Standard: IEC 61076-2-104

Categorías: Conectores, Serie M8

Descripción

Shell material：	Brass nickel plating/Zinc alloy nickel/PA+GF
Insulator material：	PA66
Sealing material：	Epoxy resin/Rubber
Contact material：	Brass/Phosphorus copper gold-plated
Molding material：	TPU/PVC
Insulation impedance：	≥100 MΩ
Contact impedance：	≤5 mΩ
Durability：	≥500 Cycles
Applicable temperature：	-25℃ ~ +80℃
Waterproof grade：	IP65/IP67
Executive standard：	IEC 61076-2-104
