Varón de alta calidad del PVC de la automatización industrial de la fábrica al cable impermeable femenino del conector M8 de 5 pines
Volver a productos
M8 Straight Female Metal Assembled Plug (Screw terminal)

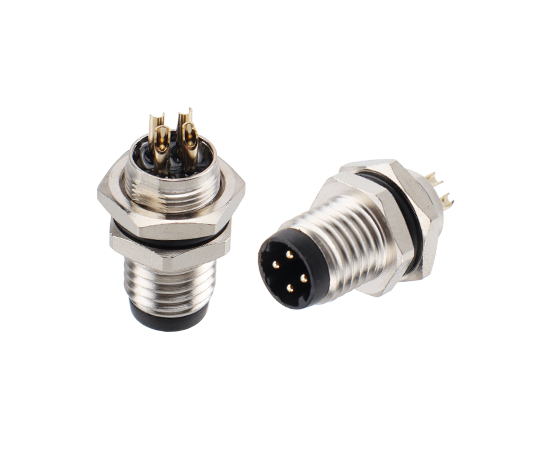

M8 Male Front Mount Socket(Solder, Screw M8*0.5)

European standard Connectors M8 Series
Structure type:Front Mount Socket
Connection method:Solder
Pin type:Male
Contacts number:3, 4, 5, 6, 8 alfiler
Shield:No
Certification:CE,RoHS,UL
Standard:IEC 61076-2-104

Consulta ahora
Categorías: ,

MECHANICAL PARAMETERS

Shell material： Brass nickel plated
Insulator material： PA66
Sealing material： Epoxy resin/Rubber
Contact material： Phosphorus copper gold-plated/Brass copper gold-plated
Molding material： TPU/PVC
Insulation impedance： ≥100 MΩ
Contact impedance： ≤5 mΩ
Durability： ≥500 Cycles
Applicable temperature： -25℃ ~ +80℃
Waterproof grade： IP65/IP67
Execution standard： IEC 61076-2-104

ELECTRICAL PARAMETERS
