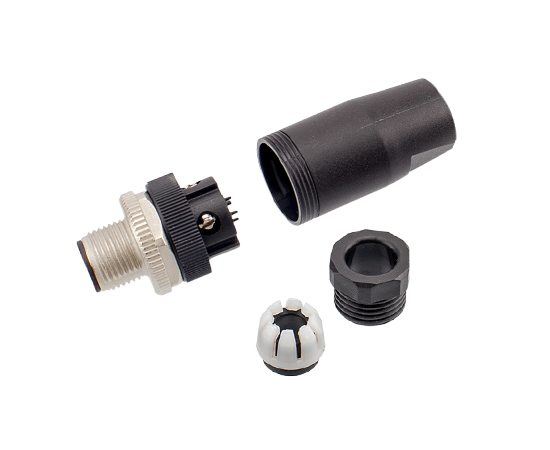

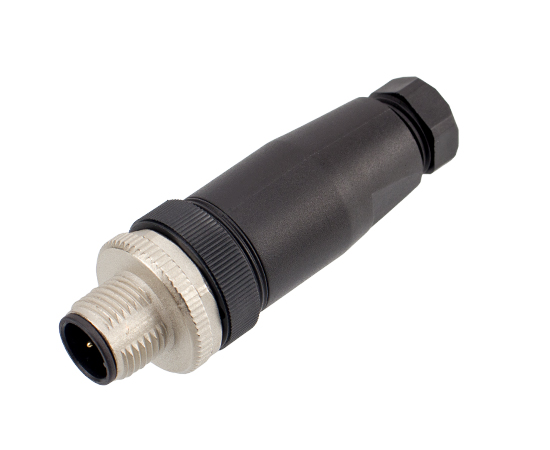

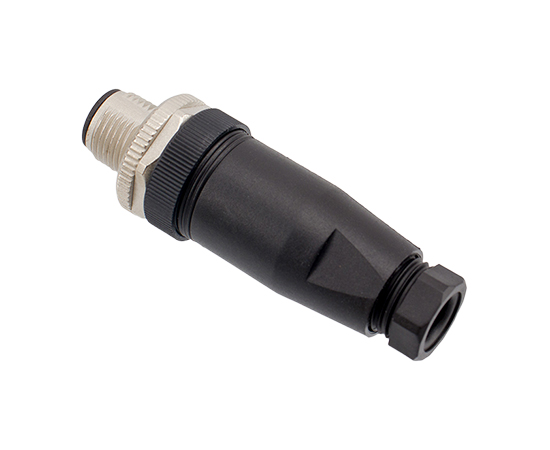

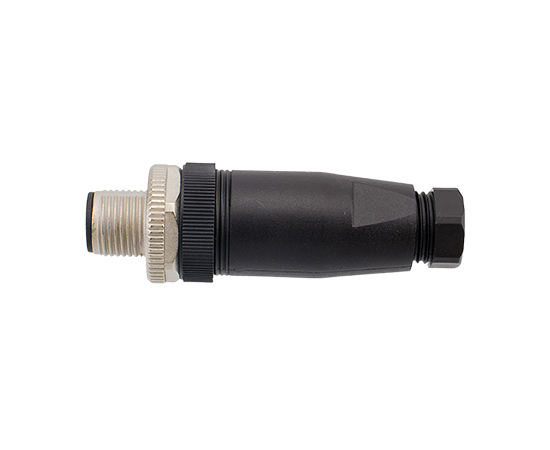

M12 Straight Male Plastic Assembled Plug Screw

European standard connector M12 series
Structure type: Straight Male Plastic Assembled Plug (Screw)
Pin type: Male type
Contacts number: 2,3,4,5,6,8 Pins
Connection method: Screw
Shield: No
Certification: CE,RoHS,UL
Standard: IEC 61076-2-101

Categorías: Conectores, Serie M12

Descripción

TECHNICAL PARAMETERS

Shell material	Brass nickel plating / Zinc alloy nickel / PA+GF
Insulator material	PA+GF/TPU
Sealing material	Epoxy resin / Rubber
Contact material	Brass / Phosphorus copper gold-plated
Molding material	TPU / CLORURO DE POLIVINILO
Insulation impedance	≥ 100 MΩ
Contact impedance	≤ 5 m Ω
Durability	≥ 500 Cycles
Applicable temperature	-25℃ ~ +80℃
Waterproof	IP65 / IP67
Executive standard	IEC 61076-2-101

ELECTRICAL PARAMETERS
